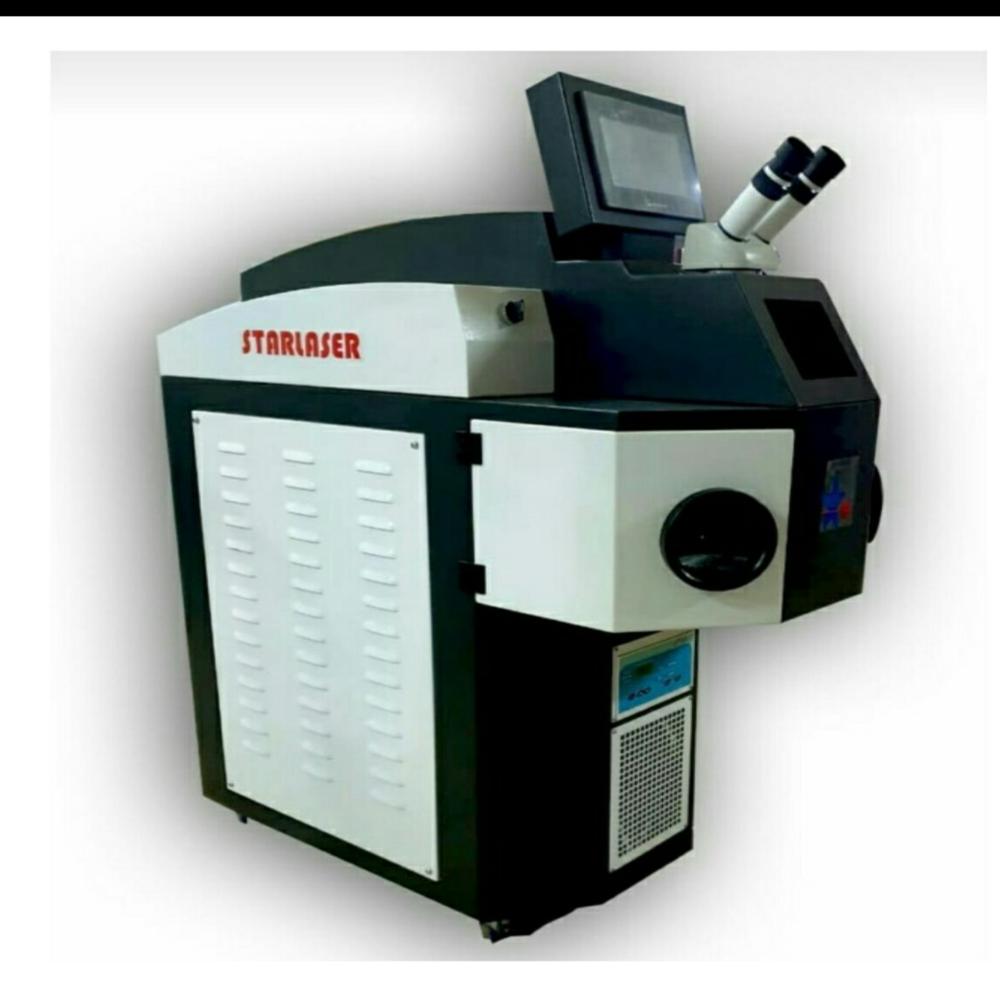

Jewellery Laser Welding Machine

Name: Jewellery Laser Welding Machine
Brand: STARLASE SYSTEMS PVT. LTD.
Price: 150000 INR
Availability: InStock

Price 150000 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

Jewellery Laser Welding Machine Specification

Type
Jewellery Laser Welding Machine

Power
200W

Insulation Grade
H

Arc Current
30-200 A

Pulse Frequency
0.1-20 Hz

Welding Area
Standard 110 x 110 mm (customizable)

Condition
New

Output Current
Adjustable

Function
Precision Laser Welding for micro objects & jewellery

Input Current
10-15 A

Cooling Method
Built-in Closed Circulation Water Cooling

Dimension (L*W*H)
900 x 450 x 600 mm

Voltage
AC 220V 10%, 50/60Hz

Efficiency
90%

Usage
Gold, Silver, Platinum, Stainless Steel, Jewelry Repair & Manufacturing

Weight
Approx 90 kg

Frequency
1-50 Hz (adjustable)

Material
Industrial Grade Metal + Polymer Housing

Language Support
Multilingual Touchscreen Interface

Protective Gas
Argon/Nitrogen (optional inlet)

Observation System
Microscope (10X) with crosshair

Spot Diameter
0.1-3.0 mm adjustable

Safety
Overload Protection & Emergency Stop

Max Single Pulse Energy
80J

Laser Wavelength
1064 nm

Laser Type
YAG Laser

Display Type
Digital Touchscreen

Pulse Width
0.1-15 ms, adjustable

Jewellery Laser Welding Machine Trade Information

Minimum Order Quantity
1 Unit

Supply Ability
10 Units Per Month

Delivery Time
10 Days

About Jewellery Laser Welding Machine

Jewellery Laser Welding Machine is provided with several advanced features. The machine is provided with high welding speed, high functional efficiency, high weld depth, beautiful appearance and least deformation. The Jewellery Laser Welding Machine allows for superior welding of refractory materials and enables precision welding of different micro parts. It is provided with an optical fiber transmission system as well as non-contact remote welding. It is applicable for ring resizing, repairing bezel settings, retipping prongs, reassembly of broken earrings, necklaces and bracelets, etc. Other than that, it is useful for filling porosity and making beauteous and highly beautiful made-to-order designs.

Exceptional Precision for Jewellery Crafting

Achieve flawless micro-welding with our YAG laser system, offering an adjustable spot diameter and single pulse energy up to 80J. The advanced 10X microscope with crosshair enhances accuracy, ensuring seamless repairs and manufacturing for even the most intricate jewelry designs. Ideal for artisans seeking meticulous detail and strength in every weld.

User-Friendly Multilingual Touchscreen

Navigate machine settings with ease using the digital touchscreen interface supporting multiple languages. Adjust pulse width, frequency, and output parameters quickly to match each unique welding task, providing both flexibility and efficiency for users regardless of their language preference in a busy workshop environment.

Safety and Durability Guaranteed

With built-in overload protection, an emergency stop system, and robust construction using industrial-grade metal and polymer housing, safety is paramount. The closed circulation water cooling system ensures sustained performance, while argon or nitrogen gas inlets shield welds from contamination, extending the lifespan of both the machine and your jewelry pieces.

FAQ's of Jewellery Laser Welding Machine:

Q: How does the Jewellery Laser Welding Machine improve jewellery repair and manufacturing?

A: This machine allows for highly precise, clean, and durable welds on gold, silver, platinum, and stainless steel items. The adjustable laser controls and integrated observation system help repair or manufacture jewelry without causing thermal damage, even on delicate micro objects.

Q: What is the process for using the laser welding machine on different metals?

A: Select the metal type, adjust the spot diameter (0.1-3.0 mm), set appropriate pulse width and frequency, and use the built-in digital controls. Observe the welding area through the 10X microscope, initiate welding, and optionally use argon or nitrogen for a cleaner weld. All operations are managed via the intuitive multilingual interface.

Q: When should I use the adjustable pulse settings on the laser welding machine?

A: Adjust pulse width and frequency depending on the metal thickness, type of repair, and precision required. Thicker metals or complex joints may benefit from longer pulse durations, while ultra-fine work on micro jewelry components requires shorter pulses and narrower spot diameters.

Q: Where can this jewellery laser welding machine be installed?

A: Due to its compact (900 x 450 x 600 mm) build and efficient closed water cooling, the machine can be installed in jewelry workshops, manufacturing units, or repair studios. It works on a standard AC 220V power supply, making it versatile for various professional environments.

Q: How does the built-in observation system enhance welding quality?

A: The microscope (10X) with crosshair allows operators to precisely target the weld area, minimizing errors and reducing the risk of damaging adjacent parts. This precision is crucial for high-value, intricate jewelry items.

Q: What benefits does the protective gas system offer during welding?

A: Introducing argon or nitrogen during welding shields the molten area from oxidation and impurities. This results in cleaner, brighter welds and adds strength and longevity to jewelry repairs or new creations.

Q: Is the machine safe and reliable for continuous use?

A: Yes. The laser welder features overload protection, an emergency stop function, and efficient cooling, ensuring safe, uninterrupted operation. Its industrial-grade build supports high usage demands typical in jewelry manufacturing and repair settings.
